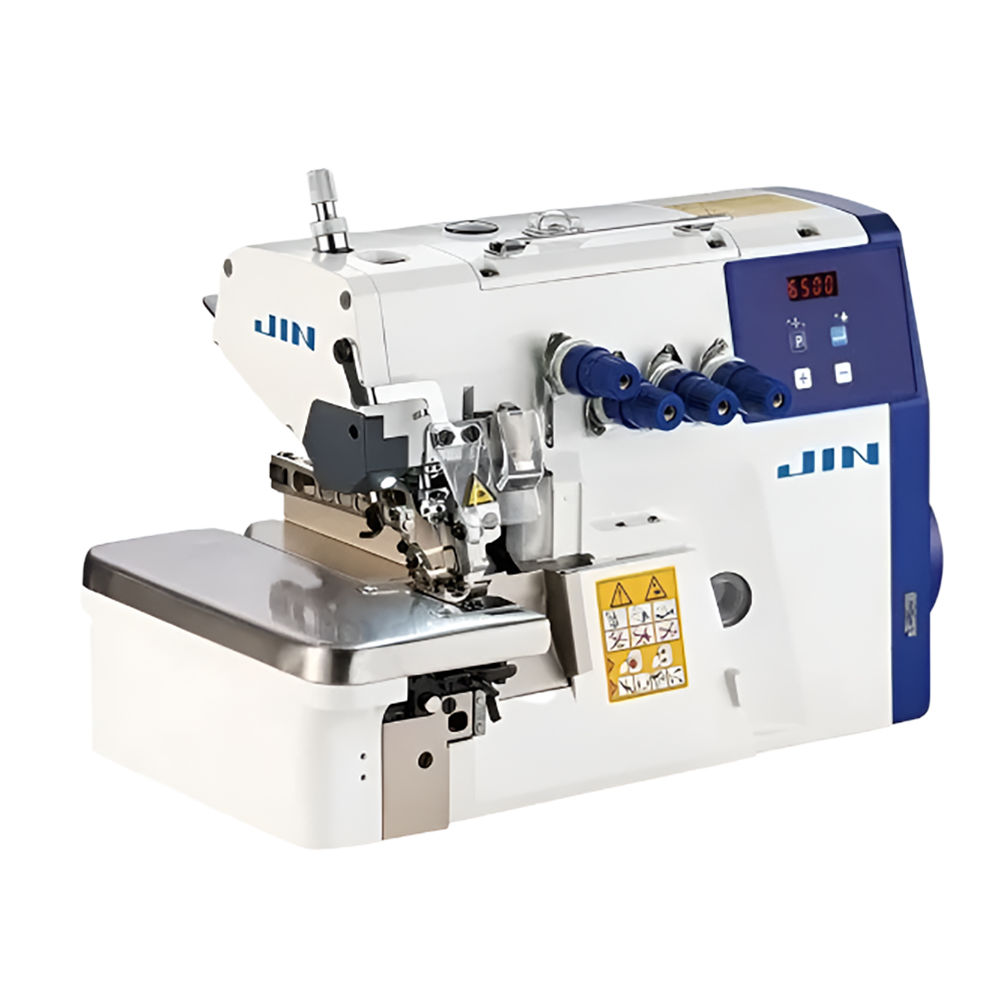

JIN M1-424NS Industrial 2 Needle Overlock Machine Complete Set

Direct-drive, High-speed, Overlock / Safety Stitch Machine

The maximum sewing speed of the M-1 series is 7,000sti/min.
The direct drive system has been adopted.
Both the control box and the operation panel are integrated with the machine head.

LED hand light

The illuminance of the LED hand light can be adjusted in 2 steps for the SF type / AE type. (NS type is on / off). It can be adjusted to the illuminance to help the operator to easily carry out work around the needle, thereby helping increase work efficiency.

Multi-function USB connector
   Since the USB port is provided as standard for the control box, software can be upgraded with ease.

Specifications

• 2-needle overlock
• Needle gauge (mm)2.0
• Overedging width (mm) 4.0
• Needle bar stroke 23.0mm
• Needle DC×27 #14
• Max. lift of the presser foot 5.0 mm
• Lubrication Automatiac
• Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
• Cartridge oil filter Provided as standard
• Power requirement Single-phase 220V / Single-phase 110V
• Power consumption 1.51kwh
