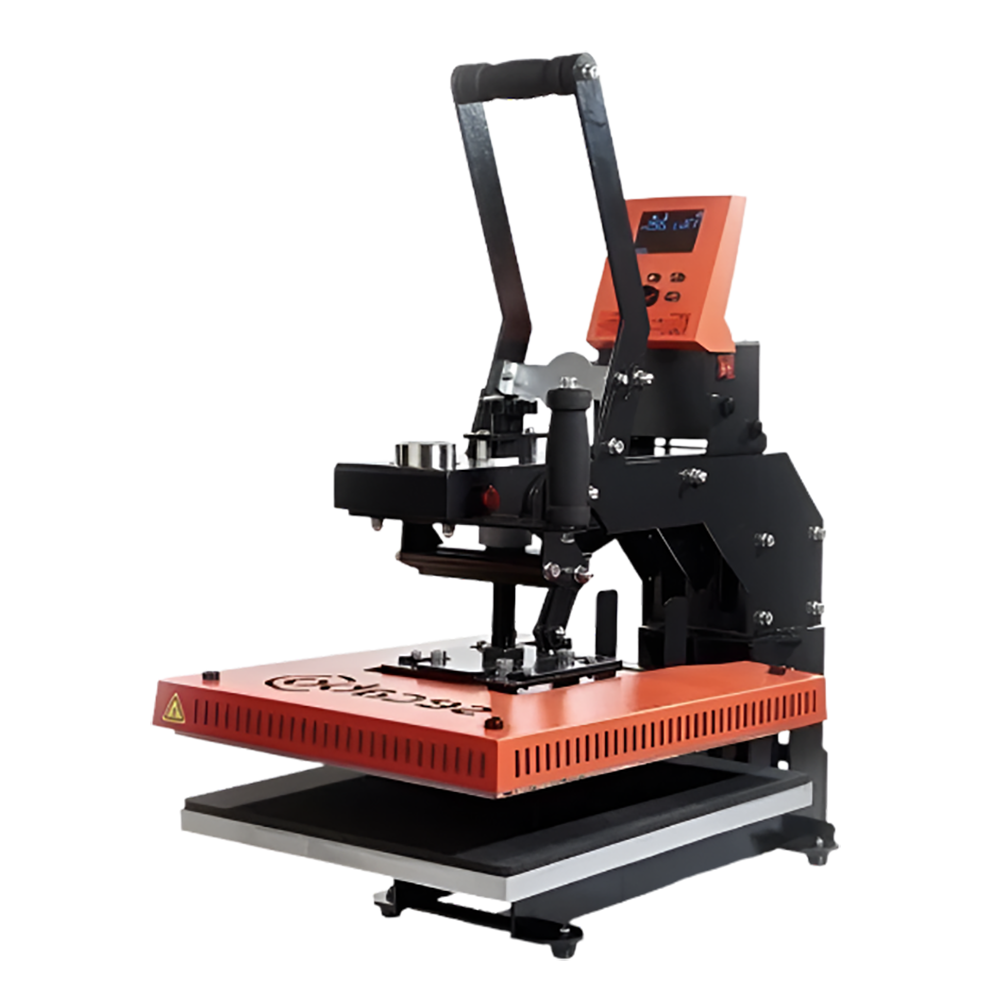

Secabo Heat Press TS7 SMART

Overview: Secabo TS7 SMART

• The professional device for high-end applications at the highest level - The TS7 SMART swing-away heat press by Secabo is THE professional device for garment finishing at the highest level and the first heat press by Secabo Made in Germany.
• The professional device has a modular structure and thus presents you with an optimal basis for creating your fully individualized “workhorse”. With its comfortable automatic swinging mechanism, the Secabo TS7 heat press offers a large workspace for comfortable placement of transfer objects.
• The spacious base plate with a size of 40cm × 50cm is arranged in portrait mode, further simplifying the precise positioning of the transfer objects. Transfer objects with a height of up to 100mm are easy to work with thanks to the press head's tall adjustment range and can be pressed with a maximum contact pressure of up to 250g/cm2. Regardless of whether you want to press work trousers, gym bags or hoodies, the large adjustment range ensures a great level of flexibility. With its swiveling angle of 110° allows the operator to work in a pleasant working position.
• The TS7 SMART's swivel direction can be set to the right or to the left, thus ensuring that the heat press perfectly fits within just about any production environment. The automatic opening and automatic swinging of the TS7 SMART swing-away heat press upon transfers makes your work easier and ensures a smooth workflow.
• The Secabo TS7 Smart is suitable for all known heat transfer methods and can be used in all areas of transfer technology. As is to be expected from Secabo, the TS7 SMART is exceptionally user-friendly and can also be operated by novice users. The device is provided with digital controller that allows precise setting of a temperature of up to 225 °C and a pressing time of up to 999s for the transfer. As is the case with all TC SMART series products from Secabo, the TS7 SMART features a Bluetooth interface which, along with the Secabo SMART Transfer App, offers complete instructions for multi-stage transfer and many other great features.
• The TS7 SMART heat press is compatible with the Softheat heat plate SH7 and/or the Thermobase TB7, quick-change systems, exchangeable base plates and the slide extension as well as other accessories from Secabo.

Intelligent display functions and intuitive control concept
Our SMART models are equipped with new electronics that were developed on the basis of Secabo's extensive industry know-how and are "Made in Europe". In addition to known settings, such as temperature and time, the range of functions has been extended to include settings for pre-pressing, a counting function, sleep and auto-off mode, 10 memory locations for transfer parameters, and many other features. The control concept has been completely reworked to further improve press handling for the user - the rotary push button and the large display are significant contributions to this.

State-of-the-art construction and even more options
The TS7 SMART impresses with a new intelligent design and construction. When selecting the processed components, attention was paid to high-quality materials and surfaces. With Secabo's many years of know-how and manufacturing in Germany, we offer the best quality here. The working area of 40 x 50 cm and the large adjustment range of the press head enable processing of large-area textiles and high transfer objects up to 70mm!

Fantastic combination options
The TS7 SMART features a modular design that optionally allows for quick and easy equipping with replaceable base plates of various formats, with a quick-change system and with a slide extension. Particularly noteworthy is the ability of expansion with the SH7 Softheat heat plate in combination with the heated TB7 base plate, both of which are absolutely new innovations. This combination offers enormous simplification as well as improvement in quality and process reliability, especially with multi-stage transfers.

Bluetooth interface
The device can be connected and controlled via Bluetooth with a mobile device and the Secabo Smart Transfer App.

Secabo Smart Transfer App
The device is ready for control via the Secabo app. With the aid of this app, suitable transfer parameters can be selected for your application.

Digital controller
Duration and temperature can easily be adjusted and monitored using the digital controller.

Variable work pressure
The work pressure is easy to adjust - in each case matching the transfer object and procedure

Safe working
The safety and quality of this device is constantly monitored - according to German safety standards

Replaceable plates
Interchangeable base plates available - also in combination with a quick-change system.

Low hysteresis
A state-of-the-art controller reduces the temperature fluctuations to a minimum, thus ensuring consistently good transfer results.

Opens automatically
The heat press automatically opens after the set time has elapsed.

Large workspace
The press can be opened over 110°, thus guaranteeing relaxed and safe working.

Precise temperature distribution
The high-quality heat plate ensures an exact temperature distribution over the entire heating surface.

Technical Data

• 100-109-011-14
• Working area size: 40cm x 50cm
• Adjustment of the Max. Object height: 70mm
• Swivel angle: 110 °, opening to the right or left possible
• Max. temperature: 225 °C
• Max. contact pressure: 250 g / cm ²
• Max. preset time: 999 s
• Pressure setting: Height-adjustment of the heat plate via hand wheel
• Power supply: AC voltage 230V / 50Hz - 60Hz, 2kW
• Environment: +5°C - +35°C / 30% - 70% relative humidity
• Dimensions with pedestal boom: W: 596 mm x D:1070 mm H:854 mm
• Items included: heat press, power cord, english manual
• Optional: Quick change system, exchangeable base plates, slide extension, heated base plate TB7, Softheat heat plate SH7
• weight without packaging 64.00 kg
• weight with       package    73.00 kg
